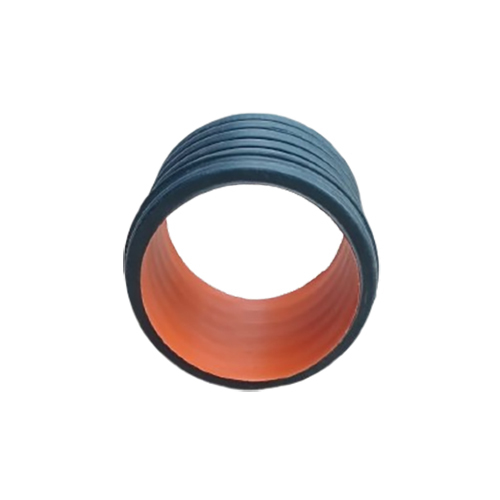

01_Dwc 300mm Sewrage Pipe

Get a Price/Quote

MOQ : 100 Pieces

01_Dwc 300mm Sewrage Pipe Specification

Connection Type
Push Fit/Snap Fit Coupling

Bend Radius
Up to 6D

Tolerance
5 mm

Diameter
300 mm

Temperature Range
-20C to +60C

Tensile Strength
>18 MPa

Flexibility
Flexible

Coating Type
No Coating

Sealing Type
Rubber ring sealing

Product Type
Double Wall Corrugated (DWC) Sewage Pipe

Material
High Density Polyethylene (HDPE)

Connection
Coupler or Push-fit

Shape
Round

Standard
IS 16098, IS 14930

Surface Treatment
Plain

Outer Diameter
300 mm

Section Shape
Circular

Length
6 m

Thickness
10-22 mm

Color
Black with orange/gray inner lining

Usage
Underground drainage and sewage

Rated Pressure
SN 4 & SN 8

Application
Sewerage, Drainage & Storm Water Management

Material Grade
PE-100

Recyclability
100% recyclable

Abrasion Resistance
High

Life Expectancy
>50 years

Fire Resistance
Not fire rated

Inner Diameter
260 mm

Chemical Resistance
Excellent

Permeability
Non-permeable

UV Resistance
Yes

Ring Stiffness Class
SN 4 (4 kN/m2), SN 8 (8 kN/m2)

Hydraulic Efficiency
Manning coefficient 0.009

Installation Type
Buried Underground

Weight per Meter
6.7 kg (approx.)

01_Dwc 300mm Sewrage Pipe Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About 01_Dwc 300mm Sewrage Pipe

Jump on the opportunity to secure the scarce and classic 01_DWC 300mm Sewrage Pipe, engineered for supreme underground drainage and sewerage applications. Manufactured from grandiose PE-100 grade HDPE, it offers outstanding chemical and abrasion resistance, ensuring a cost-effective, long-lasting solution-over 50 years of reliability. Non-permeable and highly flexible, it can withstand demanding environments, making it an ideal choice for storm water, drainage, or sewage management. UV resistance, 100% recyclability, and a plain, robust design complete this essential infrastructure component.

Specific Usage & Superior Features for Sewage Solutions

The 01_DWC 300mm Sewrage Pipe is crafted for buried underground installation in sewerage, drainage, and storm water management systems. Its supreme resistance to chemicals, UV rays, and abrasion ensures longevity in harsh environments. Engineered with a non-permeable, flexible design, and an exceptional manning coefficient for hydraulic efficiency, it's suitable for transporting wastewater, stormwater, or effluent in municipal, industrial, or commercial pipelines.

Packaging Details, Prompt Delivery & Domestic Reach

Each 01_DWC 300mm Sewrage Pipe is delivered in standard 6m lengths, neatly bundled for easy handling and unloading. Upon finalizing your proposal amount, pipes are shipped promptly, ensuring a swift turnaround time of 5-10 business days across the main domestic markets in India. Secure, protective packaging minimizes transit damage, guaranteeing the product reaches you in grandiose condition, ready for immediate installation.

FAQ's of 01_Dwc 300mm Sewrage Pipe:

Q: How is the 01_DWC 300mm Sewrage Pipe installed underground?

A: The 01_DWC 300mm Sewrage Pipe is designed for buried underground installation using a push-fit or snap-fit coupling system with rubber ring sealing, ensuring secure and leak-proof joints for efficient sewerage and drainage projects.

Q: What makes the 01_DWC 300mm Sewrage Pipe a cost-effective choice?

A: Its extended life expectancy of over 50 years, high resistance to chemicals and abrasion, and low maintenance needs due to the flexible, robust design make it a highly cost-effective solution for underground sewage and drainage.

Q: Where can the 01_DWC 300mm Pipe be used?

A: This versatile pipe is ideal for use in municipal sewerage, industrial effluent lines, storm water management, and general underground drainage across a broad temperature range, throughout India's domestic market.

Q: What is the benefit of the pipe's grandiose UV resistance?

A: UV resistance prevents material degradation from sunlight exposure during transport, storage, or partial exposure, maintaining its strength and integrity over time.

Q: When should I opt for SN 4 or SN 8 class pipes?

A: Select SN 4 class pipes for moderate load conditions, while SN 8 class pipes are ideal for areas with heavier traffic or greater soil pressure, ensuring supreme load-bearing performance.

Q: How is packaging handled for safe shipping?

A: Pipes are bundled and secured for transport, minimizing risk of transit-related damage. This robust packaging ensures the product is delivered in excellent condition to your project site.
